Installation options
Five easy options for installing The Stove Box whatever the circumstances.

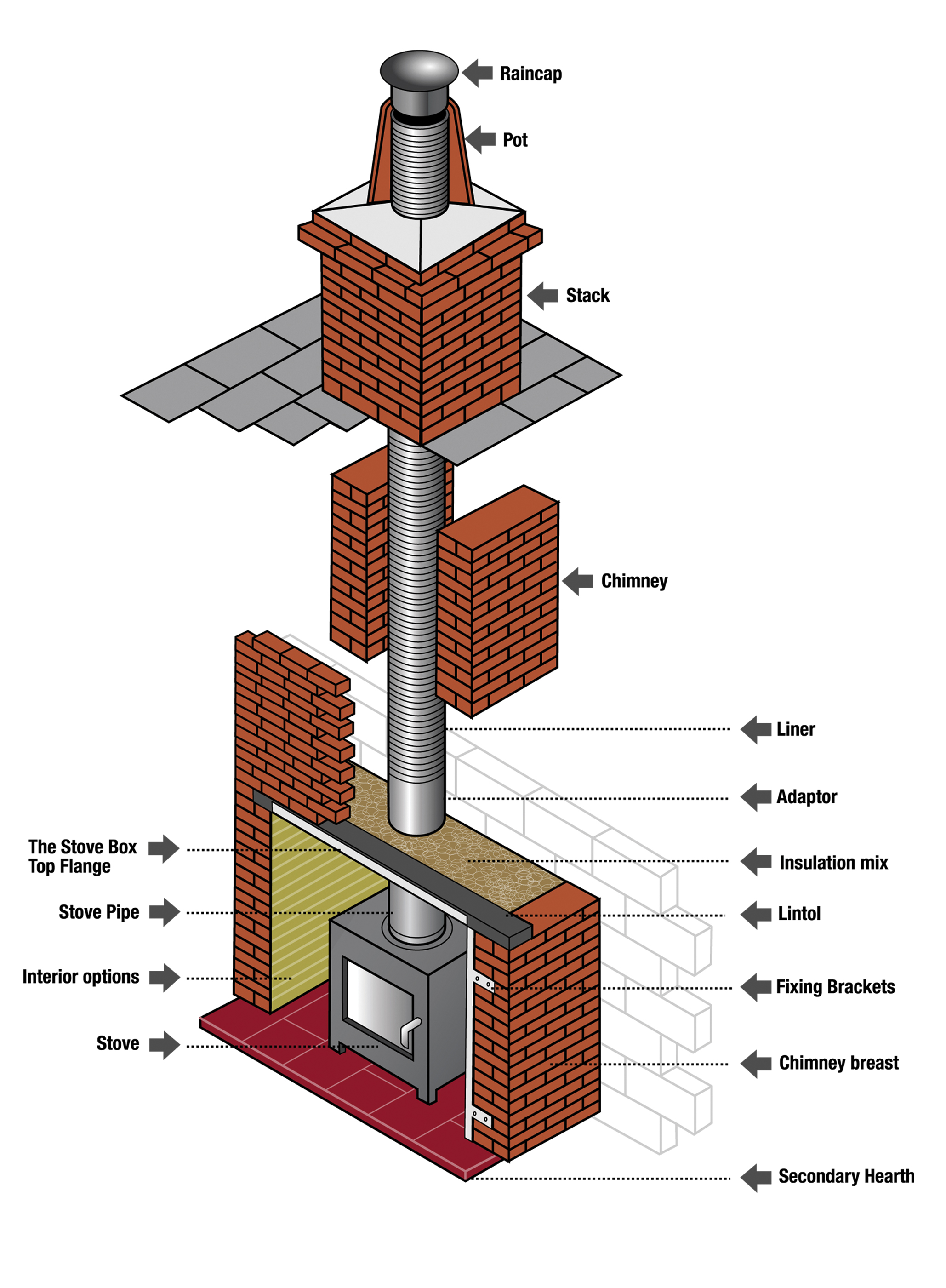

Installation 1 - Use when there is an existing chimney breast.
Use when there is an existing chimney breast. This is the most popular way the Stove Box is used, as many houses have a chimney. This will have a chimney stack with a pot on the top, and most likely would have had an open fire in it at some time.

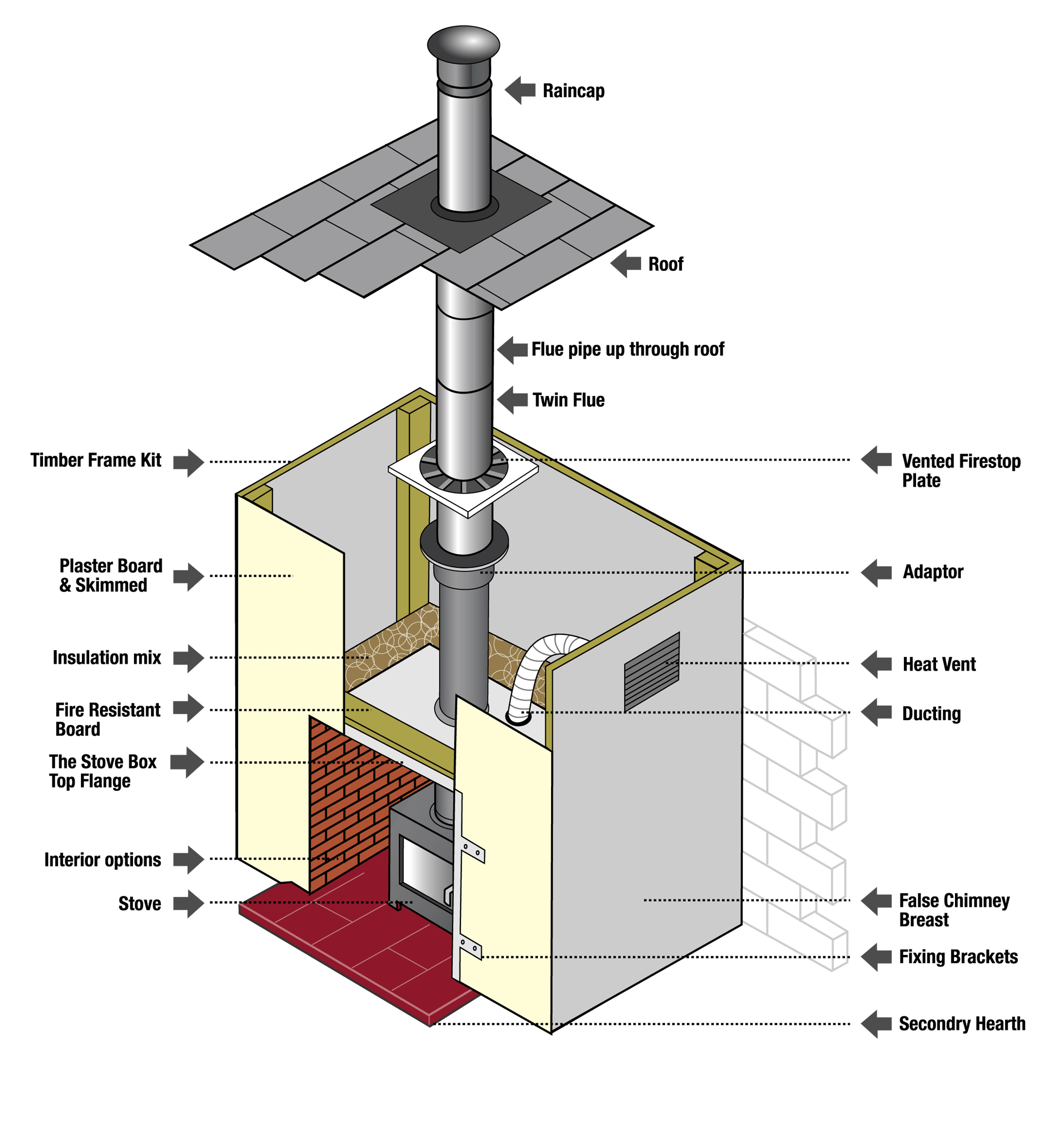

Installation 2 - Use when there is no chimney present. Build a false chimney breast and create an internal flue system.
Use when there is no chimney present. With many houses not having a chimney and a stove is required, there are various options in a room with no flue or in some cases a class 2 flue, which is not suitable for a multi, gas, or wood burning stove.

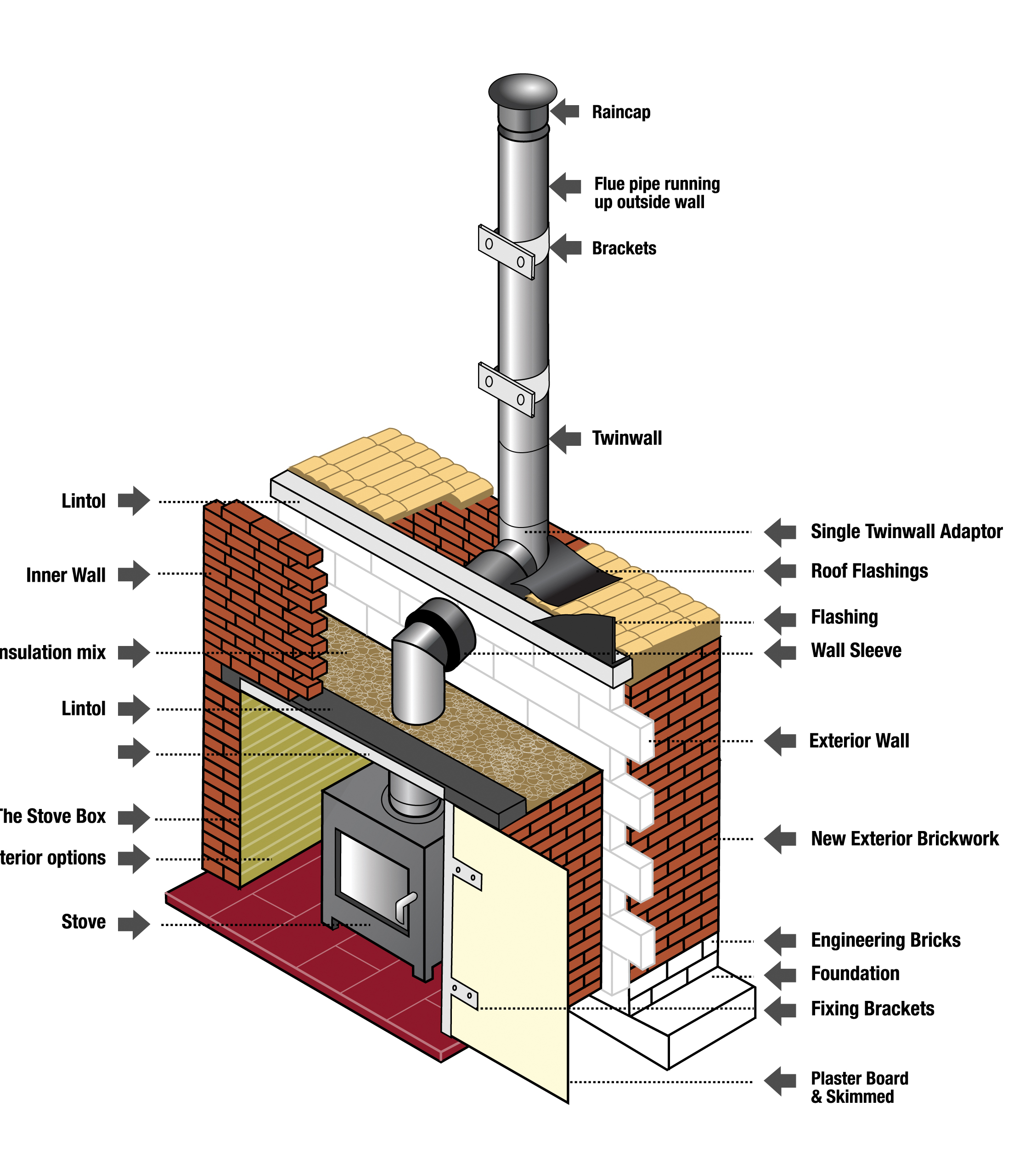

Installation 3 - Use when there is no chimney present. Build a false chimney breast and create an external flue system.
Use when there is no chimney present. This option is for a house with no chimney, but the flue cannot go up through to the roof for various reasons, then a false chimney breast is built, The Stove Box is inserted and the twinwall goes up only to the first metre above the top of the box and then at an angle out through to the exterior up to the recommended height.
Installation 4 - No chimney and tight for space? Use our new Eco-Space Saver
No chimney and tight for space? Use the NEW Eco-Space Saver. An innovative design which a Stove Box is chopped into the wall inside and through the outside skin to protrude from the exterior wall and The Stove Box is placed on a hearth and then insulated to meet the 'U" values, which is then bricked up.

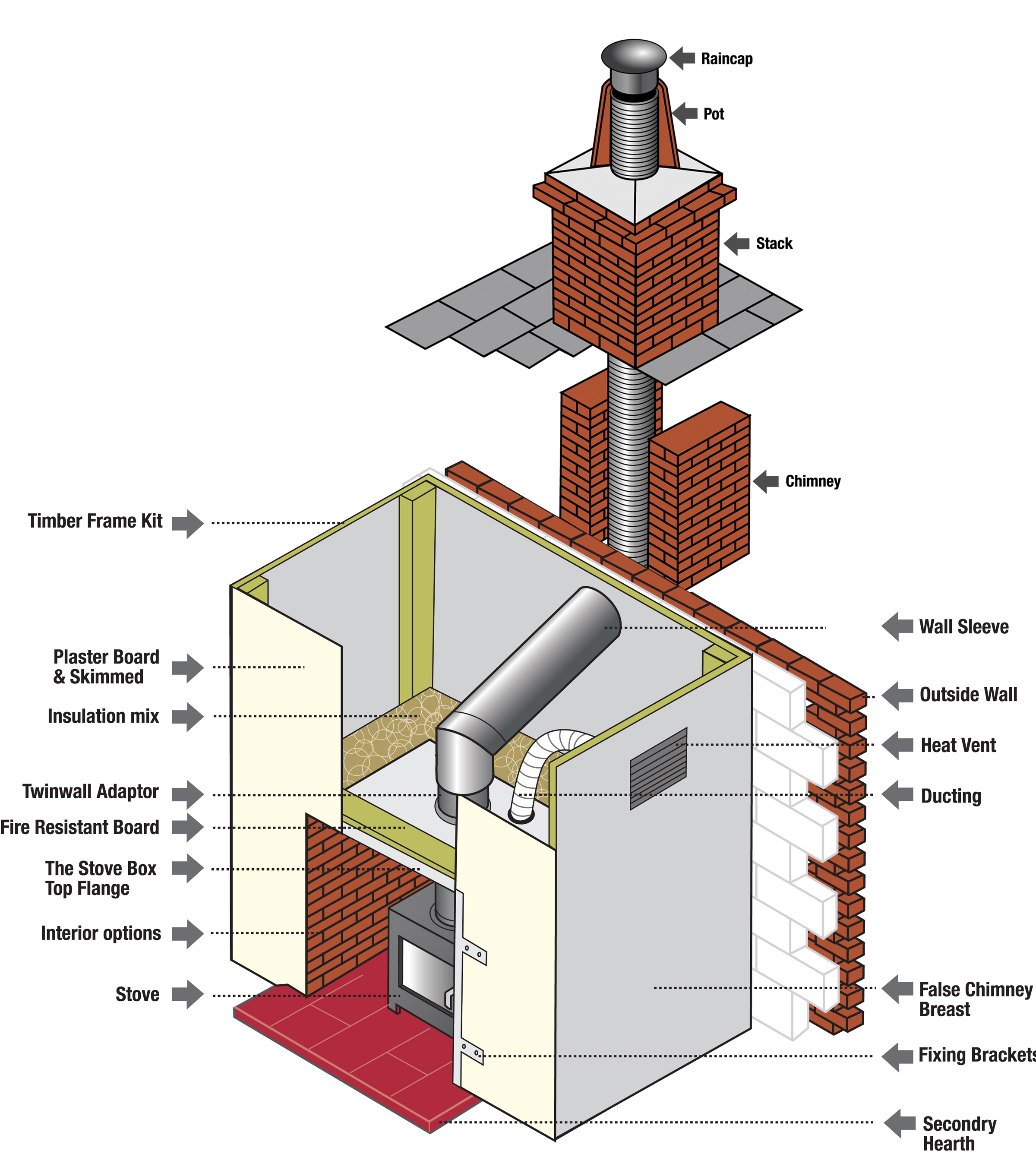

Installation 5 - An outside chimney breast which is not wide enough for a chop out? Build a false chimney breast and create an external flue system.
This option would be used when a customer has an outside chimney breast which is not wide enough for a chop out (the stove opening would be too small). SBX700 False Chimney Breast Kit would be used to create a feature and a Twinwall would be connected to The Stove Box, then transferred to the flex liner which would be brought down the chimney.
Helpful tips and installation videos
How to get the best from your stove
Are you new to stoves? Have you just purchased a stove and have no idea how to maintain it? Help is here:)
Endless Possibilities
Installing The Stove Box
See our installation video to help you install The Stove Box, saving you time an giving you handy hints.
Installing those finishing touches
Here is some installation tips when using some of our finishing touches such as installing chambers, register plates and many other products.
